1️⃣ Shoring Works

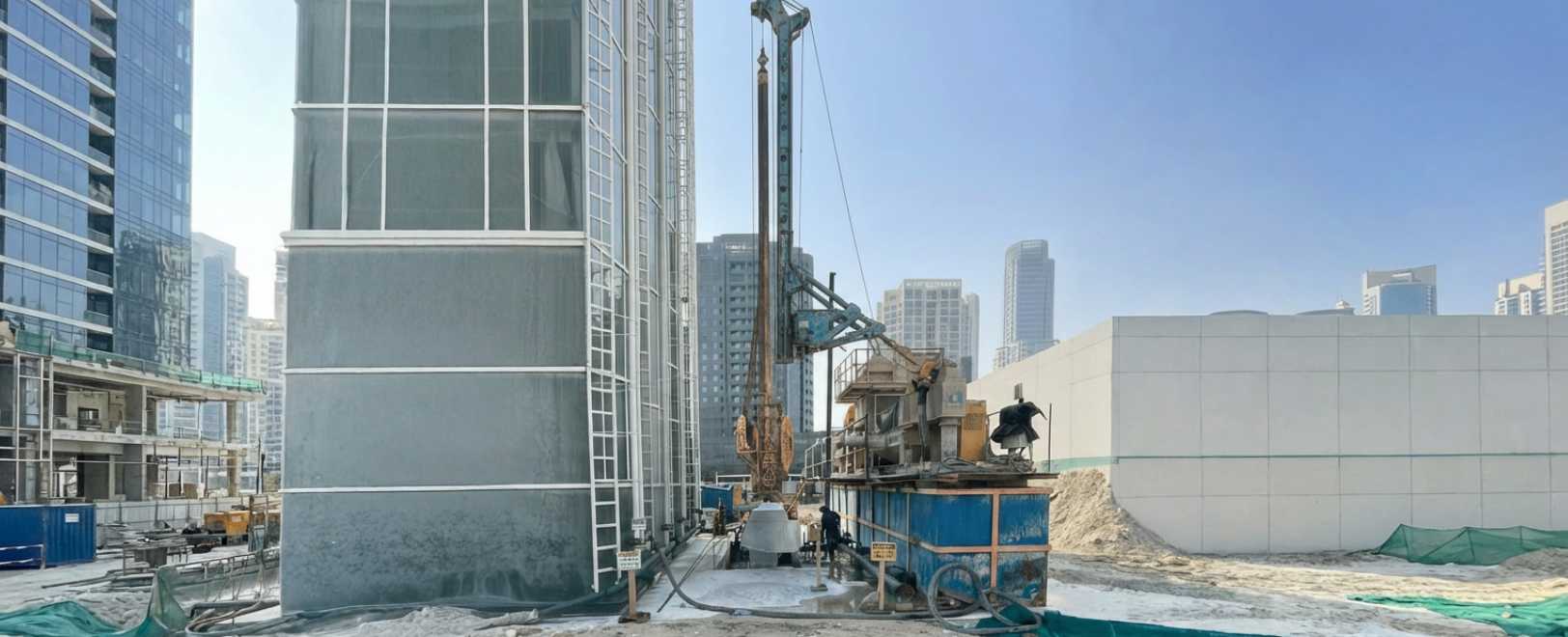

• Construction of 287 linear meters of diaphragm wall, with a wall thickness of 800 mm, forming a continuous and stiff retaining system around the excavation perimeter.
• Installation of three layers of steel struts, designed and executed to provide staged lateral support during progressive excavation phases.
• The diaphragm wall system was engineered to control wall deflection, protect adjacent properties, and ensure excavation stability throughout all construction stages.

2️⃣ Internal Shoring Works

• Excavation carried out in a controlled and sequenced manner following completion of diaphragm wall and strutting installation.
• Maximum excavation depth achieved: 23.0 meters.
• Total excavation quantity handled was approximately 135,000 cubic meters, executed in compliance with approved method statements and safety requirements.

3️⃣ Engineering, Safety & Quality Compliance

• All works were executed in accordance with consultant-approved designs, project specifications, and international engineering standards.
• Continuous monitoring of excavation and shoring performance was carried out to ensure structural integrity and safety.
• Strict HSE, QA/QC, and documentation procedures were implemented throughout the project lifecycle.
